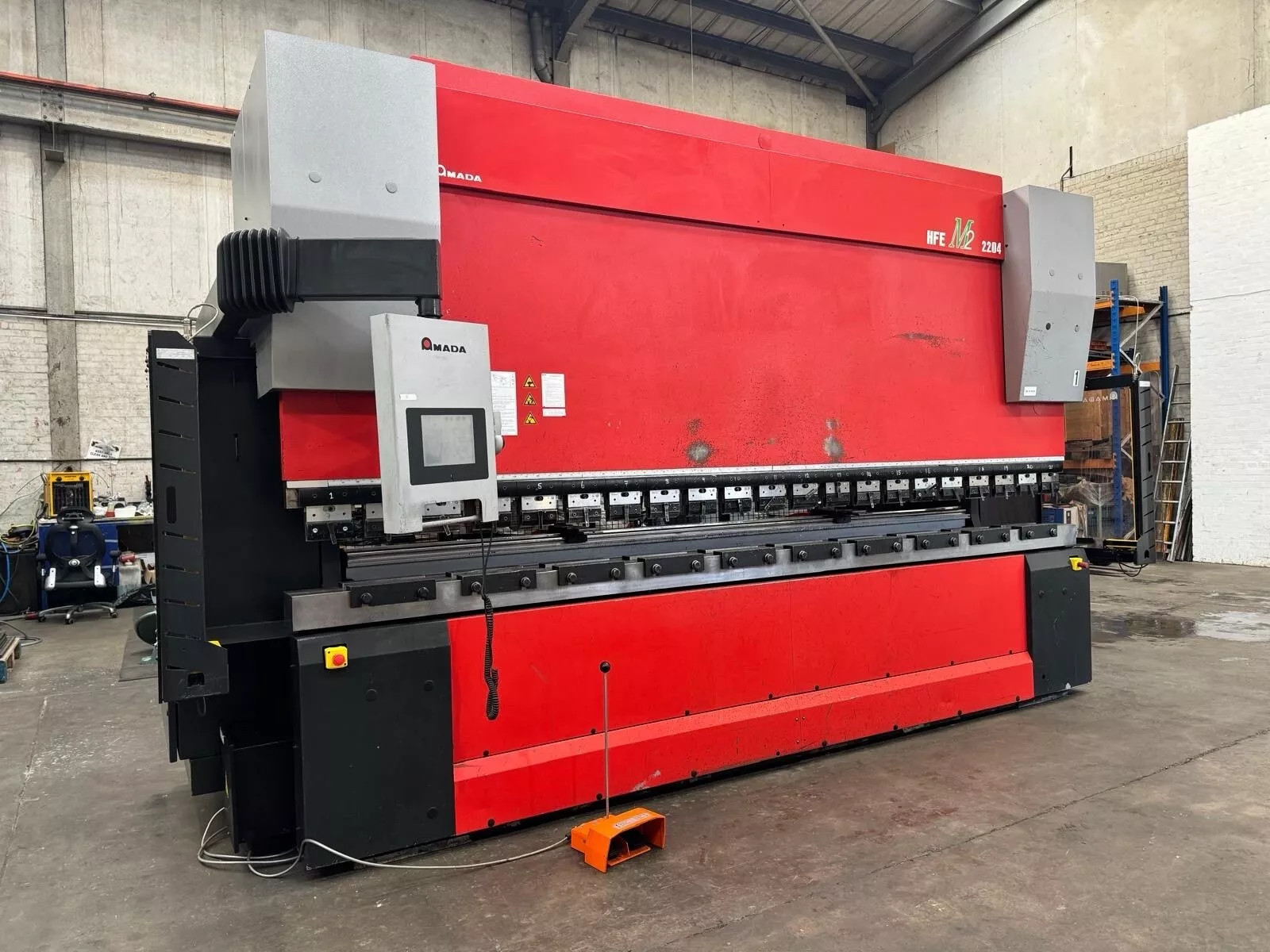

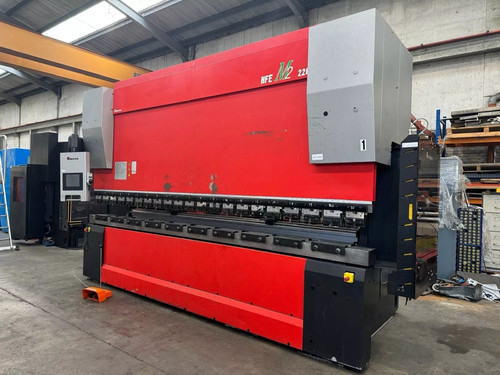

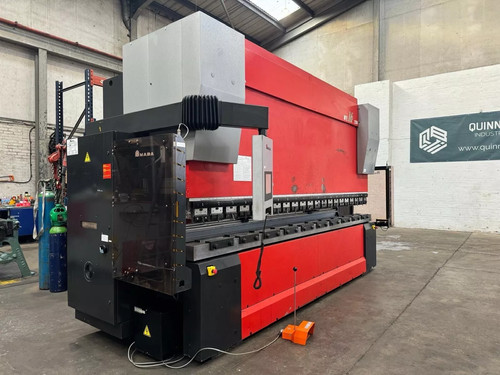

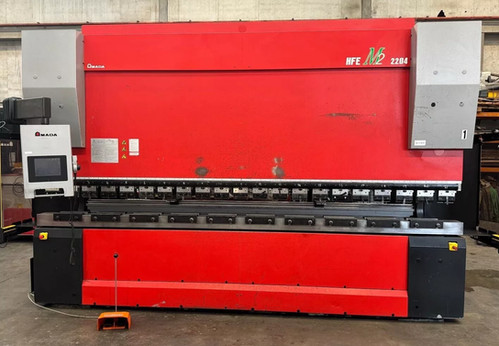

Amada HFE M2 2204 8 Axis CNC Pressbrake

Amada HFE M2 2204 8 Axis CNC Pressbrake
YOM 2011
Capacity:
Pressure force 220 tons
Folding length 4000 mm

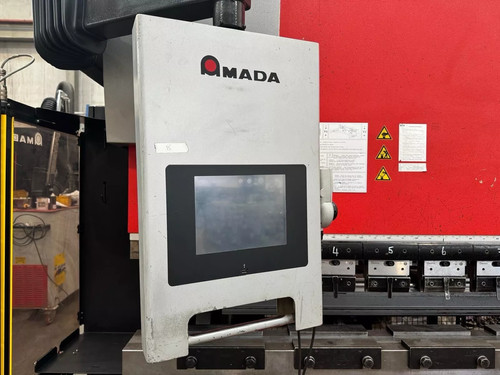

Amada M2 control
8 Axes ( Y1, Y2, X1, X2, R1, R2, Z1 & Z2)
With:

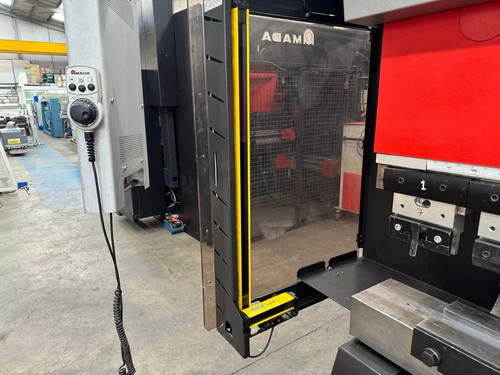

SICK C4000 Infrared Lightguards

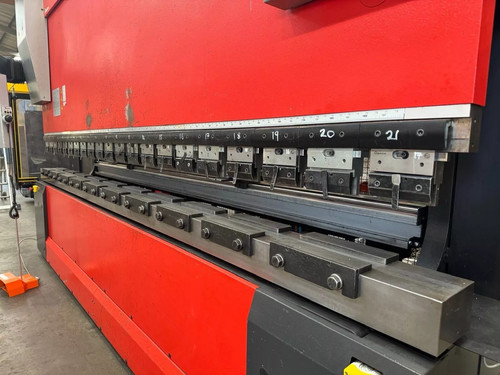

Quick Release Top Tool Holders

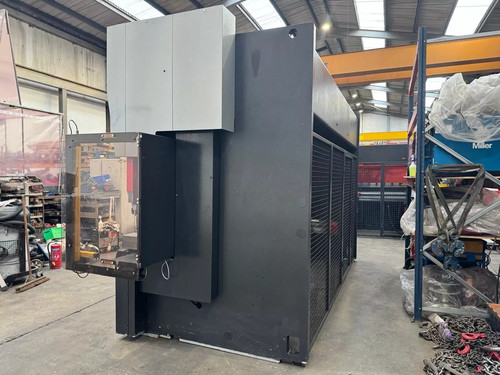

Rear Gate Guards
Wandering Twin Foot Pedal
Free Standing

Technical specifications
Maximum press force 2200 kN
Length of press beam 4280 mm
Passage between uprights 3760 mm
Projection 420 mm
Stroke 200 mm
Installation height 420 mm
Working table width 180 mm
Table height 960 mm
Delivery speed 1-100 mm / s
Working speed 1-10 mm / s
Retraction speed 1-100 mm / s
Oil volume 295 l
Electrical connection 400 V / 50 Hz / 20 kW
Total length 5420 mm
Total width 2660 mm
Total height 3050 mm
Total weight 17,500 kg
